Flying Training

Lesson 69: Navex 2

Camden - Katoomba - Bathurst - Orange - Oberon - The Oaks - Camden

Saturday 26 Feb 2011 at 9.00am with Dave Cooper in Warrior VH-PBS

Weather: scattered cloud 1500 feet, overcast 9000 feet.

See Navex 1 and Navex 3

Must write this up while fresh in my mind...

* Planning - double-check frequencies against ERSA - I had written 119.9 for Orange; it's 119.0.
* Don't taxi against brake!
* Fuel calculations on log/backing sheet
* Ensure all comms are OFF before engine start (and before master switch OFF). That's COM 1, COM 2,
  NDB and transponder. Probably not the audio panel itself.
* Learn the navigation/communications equipment: left knobs on KLX 135A for
  frequencies; right for GPS. Leftmost white button toggles active/inactive
  frequencies; right button is OK on GPS. GPS needs about 5 OKs before it's
  properly alive.
* Learn the GPS!
* Radio: mic switch separate from phones switch on KMA 24 audio panel - set both to COM 1.
* Program as many frequencies in as possible, ie:
  COM 1: Tower (120.1) + Ground (121.9), then switch Ground to Sydney radar (124.55)
  COM 2: ATIS (125.1)
  NDB: Camden (281) for quick return if cloud rolls in; then Katoomba. Toggle with FRQ button.
    Check both using the ADF switch on the audio panel and listening to the morse code.
* Leftmost buttons on the audio panel are for the ILS marker, so not relevant to VFR.
* Transponder is brand new, and works differently. Practice changing the code, but make sure it's
  on standby (SBY). Press VFR button to set it to 1200. 3000 needs to be set.
* Nav to Bindook (116.80). Identify by switching it to VOICE and pressing NAV 1 on audio panel
  (What does it transmit, ie what do we listen for? Morse code?)
* For a hot day - the fan control is to the right of the RH yoke.

Lessons Learned

  • On a go-around, positive rate of climb before retracting the flaps!.
  • Don't track towards an inbound reporting point.

Photos

Click to enlarge
Katoomba airfield 		Click to enlarge
Leura 		Click to enlarge
Katoomba 		Click to enlarge
Narrow Neck 		Click to enlarge
Panel KAT-BTH
Click to enlarge
Bathurst 		Click to enlarge
Dave at Orange 		Click to enlarge
Me at Orange 		Click to enlarge
Firefighting aircraft 		Click to enlarge
PBS at Orange
Click to enlarge
Departing Orange 		Click to enlarge
Back at Camden 		Click to enlarge
PBS at Camden 		Click to enlarge
PBS interior 		Click to enlarge
PBS panel
Click to enlarge
PBS flight instruments 		Click to enlarge
PBS engine instruments 		Click to enlarge
PBS nav/comms 		Click to enlarge
PBS radio stack 		Click to enlarge
PBS new transponder

Weather

Camden

Temperature and rainfall
Temperature and rainfall

Wind and pressure
Wind and pressure

Orange

Temperature and rainfall
Temperature and rainfall

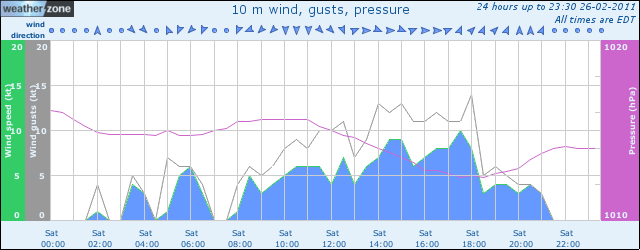

Wind and pressure
Wind and pressure

Checklist for next flight

  • Book a half day and arrive 1 hour before departure to allow time for planning.
  • Bring ERSA, maps, track already plotted: CN-Katoomba-Bathurst-Orange-Oberon-CN.
  • Frequencies: for every landing point + alternates + Airservices (green frequencies only).
  • Fuel calculations.
